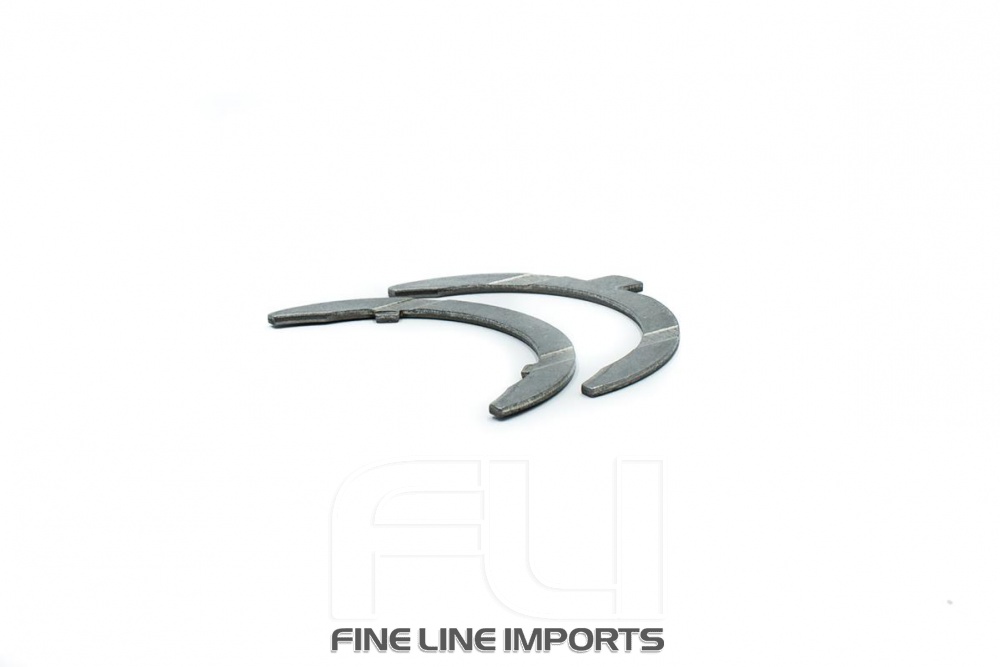

Thrust washer - 2T1644C - Calico Coated
Thrust washer
-
Omschrijving
CT-1 is a Dry Film Lubricant coating that helps reduce friction and abrasive wear. It provides intermittent dry lubrication and is not affected by dust or dirt. CT-1 is specifically engineered to withstand the extreme conditions of today’s high performance engines. Professional engine builders enjoy a higher level of confidence with increased embedability, strength and durability.
PROCESS
CT-1 Dry Film Lubricant coating is applied as a spray process. Different surface preparation methods appropriate for the substrates will be used prior to the coating process. Coating thickness is varied to suit the application. Typical coating thickness for engine bearings is 0.00025 to 0.00030 inch (6 to 7.5 microns)
ADVANTAGES
Provides intermittent dry lubrication, not affected by dust or dirt, low coefficient of friction. Thin coating to accommodate assembly constraints, chemical resistance, corrosion protection, reduced friction and drag resulting in decreased parasitic losses.
- Corrosion Protection
- Increased Lubricity
- Low Coefficient of Friction
- Oil and Fuel Resistant
EMBEDABILITY
CT-1 coated bearings have excellent embedability characteristics, allowing debris contaminates to embed in the bearing, avoiding damage to the crank
EXTREME OIL TEMPERATURES
CT-1 coated bearings have shown a reduction in oil temperatures as much as 8°C - 11°C / 15˚F - 20˚F. Lower oil temperatures also aid in the loss of viscosity due to extreme heat.
LOW OIL PRESSURE/OIL STARVATION
Theoretically a crankshaft rides on a thin film of oil that protects both the crank and bearing. Real world experience such as cold starts and rough terrain conditions have proven otherwise. CT-1 coated engine bearings provide a dry film lubricant that protects against intermediate oil starvation
Product specificatie
- Half type: No Data
- Tunnel mm: No Data
- Shaft mm: No Data
- Max. Wall: No Data
- Max. Length: No Data
- Max. Length: 0.04
De levertijd staat op 3-7 werkdagen, dit is geldt alleen als de lagers op voorraad zijn in Nederland, wij updaten u direct na order, heeft u haast neem dan contact op met ons per telefoon of email voor de beschikbaarheid van de door uw benodigde applicatie. (levertijd vanaf de fabriek kan oplopen tot 2-3 weken, of langer indien geen voorraad)
- Prefixes explained
- H - ACL Race Series.(oe replacement)
- HX - ACL Race Series with 0.025mm (.001”) extra clearance.
- HD - ACL Race Series with location dowel holes.
- HXD - ACL Race Series with 0.025mm (.001”) extra clearance and location dowel
- HC - ACL Race Series Calico Coated
- HXC - ACL Race Series with 0.025mm (.001”) extra clearance. Calico Coated
Oil clearances are most accurately measured using micrometres and bore gauges.
Bearing wall thickness measurements are taken at 90 degrees to the partingline (i.e. at the crown of the bearing) using a micrometre with a ball anvil, for use on the curved ID of the bearing.
Vertical oil clearance is best measured by assembling the bearing in its housing, with bolts torqued to specification, then using a boregauge measure the assembled ID of the bearings at 90 degrees to the parting faces.
The mating crankshaft journal size is measured, and subtracting this measurement from the bearing ID bore size,gives the assembled oil clearance.ACL Race Series performance engine bearings can be assembled with .00075-.001” per 1” of journal diameter (0.020-0.025mm per 25mm of journal diameter) plus .0005” (0.013mm).
As an example for a 2.000” (50mm) journal diameter, 2.000 x .001 =
.002 + .0005 = .0025” (50/25 x 0.025 = 0.050 + .013 = 0.063mm).
Bearings should not be polished with abrasive pads or paper, on the bearing surface, to change the oil clearance![descextra]Cross reference:2T1644C inklappen
Merk Motor Lagers Audi 3A - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Audi 4B - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi 6A - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Audi AAD - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Audi AAE - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Audi ABB - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Audi ABK - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Audi ABM - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Audi ABT - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Audi ACE - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Audi ADA - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Audi ADP - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Audi ADR - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi ADW - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Audi AEB - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi AEH - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Audi AFN - (1896 cc) Thrustwasher Set Calico Coated 2T1644C Audi AFY - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi AGN - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi AHF - (1896 cc) Thrustwasher Set Calico Coated 2T1644C Audi AHU - (1896 cc) Thrustwasher Set Calico Coated 2T1644C Audi AJL - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi AKL - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Audi AMB - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi ANB - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi APF - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Audi APG - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi APT - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi APX - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi ARG - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi ARK - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi ARX - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi ARY - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi ASV - (1896 cc) Thrustwasher Set Calico Coated 2T1644C Audi AUM - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi AUQ - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi AVG - (1896 cc) Thrustwasher Set Calico Coated 2T1644C Audi AVJ - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi AVV - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi AWT - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi BAM - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi BEX - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi BFB - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi CR - (1588 cc) Thrustwasher Set Calico Coated 2T1644C Audi CY - (1588 cc) Thrustwasher Set Calico Coated 2T1644C Audi DR - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi DS - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi DT - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Audi DZ - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi EP - (1297 cc) Thrustwasher Set Calico Coated 2T1644C Audi FS - (1588 cc) Thrustwasher Set Calico Coated 2T1644C Audi JF - (1716 cc) Thrustwasher Set Calico Coated 2T1644C Audi JK - (1588 cc) Thrustwasher Set Calico Coated 2T1644C Audi JN - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi JU - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Audi JV - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi JW - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi MG - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi MU - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi NP - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi PH - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi PM - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi PP - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Audi RN - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Audi RS - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi RU - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi SD - (1847 cc) Thrustwasher Set Calico Coated 2T1644C Audi SF - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi SH - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Audi WT - (1716 cc) Thrustwasher Set Calico Coated 2T1644C Audi WV - (1588 cc) Thrustwasher Set Calico Coated 2T1644C Audi XW - (1471 cc) Thrustwasher Set Calico Coated 2T1644C Audi XX - (1588 cc) Thrustwasher Set Calico Coated 2T1644C Audi YJ - (1471 cc) Thrustwasher Set Calico Coated 2T1644C Audi YK - (1588 cc) Thrustwasher Set Calico Coated 2T1644C Audi YM - (1588 cc) Thrustwasher Set Calico Coated 2T1644C Audi YN - (1588 cc) Thrustwasher Set Calico Coated 2T1644C Audi YP - (1588 cc) Thrustwasher Set Calico Coated 2T1644C Audi YS - (1588 cc) Thrustwasher Set Calico Coated 2T1644C Audi YT - (1588 cc) Thrustwasher Set Calico Coated 2T1644C Audi YV - (1588 cc) Thrustwasher Set Calico Coated 2T1644C Audi YY - (1588 cc) Thrustwasher Set Calico Coated 2T1644C Audi YZ - (1588 cc) Thrustwasher Set Calico Coated 2T1644C Audi ZB - (1471 cc) Thrustwasher Set Calico Coated 2T1644C Audi ZC - (1471 cc) Thrustwasher Set Calico Coated 2T1644C Audi ZV - (1716 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen 1F - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen 1P - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen 1Z - (1896 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen 2E - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen 2H - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen 9A - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AAC - (1998 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AAM - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AAZ - (1896 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen ABF - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen ABL - (1896 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen ABN - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen ABS - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen ACC - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen ADD - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen ADF - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen ADP - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen ADR - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen ADY - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen ADZ - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AEB - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AEG - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AEH - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AEK - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AEP - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AFN - (1896 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AFT - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AFY - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AGG - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AGN - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AGR - (1896 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AHH - (1896 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AHU - (1896 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AJH - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AJV - (1598 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AKL - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AKR - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AKS - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen ALE - (1896 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen ALH - (1896 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen ANB - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen ANN - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen ANP - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen APF - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen APH - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen APK - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen APT - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AQY - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen ARC - (1598 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen ARG - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen ARX - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen ASU - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen ATM - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen ATN - (1598 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen ATU - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AUM - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AUQ - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AUR - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AUS - (1598 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AUZ - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AVA - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AVC - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AVG - (1896 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AVY - (1598 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AWC - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AWF - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AWG - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AWH - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AWM - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AWP - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AWT - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AWU - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AWV - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AXA - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AZD - (1598 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AZG - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AZH - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AZJ - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen AZM - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen BBU - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen BBX - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen BCA - (1390 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen BCB - (1598 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen BDC - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen BEF - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen BEH - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen BEJ - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen BER - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen BEV - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen BGD - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen BHP - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen BHY - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen BJX - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen BKF - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen BKV - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen BLZ - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen BSX - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen CBSA - (1984 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen CKJA - (1968 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen DS - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen DT - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen DX - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen DZ - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen EV - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen EW - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen EX - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen EZ - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen EZA - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen GU - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen GX - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen GZ - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen HM - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen HN - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen HT - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen HV - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen JH - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen JN - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen JP - (1588 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen JU - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen JV - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen KR - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen KT - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen PB - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen PF - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen PG - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen PL - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen PN - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen PP - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen RE - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen RF - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen RG - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen RH - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen RL - (1595 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen RP - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Volkswagen RV - (1781 cc) Thrustwasher Set Calico Coated 2T1644C Heeft u vragen over of ervaring met dit product? En wilt u dat met anderen delen? Plaats dan hier uw review. Voor alle niet-productgerichte vragen of reacties verwijzen wij u graag naar onze FAQ of naar de klantenservice.
