GFB-T9351 DV+ AUDI/VW/SKODA/SEAT 1.8/2.0/2.5 and some 1.4 TSI/TFSI Turbo Engines
GFB T9351 DV+
- Omschrijving
- Extra informatie
- Dit artikel is ook geschikt:
- Reviews(3)
- Send a friend
- Vraag over dit product?
-
Omschrijving
GFB’S DV+ SOLUTION COULDN’T BE SIMPLER – KEEP WHAT WORKS AND REPLACE WHAT DOESN’T.
- BEWARE of counterfeit products
- ONLY buy from authorized dealers
- Retains the factory solenoid coil for seamless integration
- Replaces plastic valve parts with metal for reliability and strength on chipped engines
- Direct-fit replacement with GFB’s TMS benefits
- Exclusive “pilot-actuated” valve mechanism for rapid response at high boost

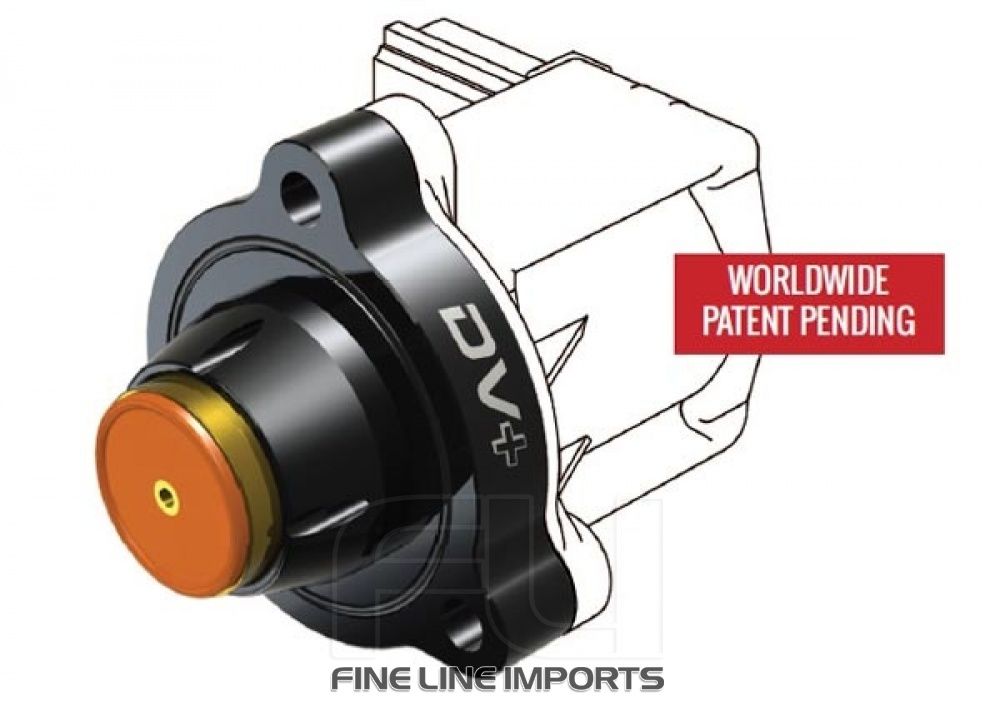

GFB expands the DV+ range with a direct-fit solution for the weak factory diverter valve used on many European vehicles.The solenoid coil itself from the factory-fitted valve is great (the ECU opens it faster than any pneumatic valve so why replace it?), but the weak point however is the valve mechanism itself. So GFB’s DV+ solves this problem by replacing just the valve parts with an anodised billet aluminium housing fitted with a brass piston machined to exacting tolerances.
The end result is sharper throttle response, lightning-fast valve actuation, and it will hold as much boost as you can throw at it. Read all about the DV+ story on the next page.
Other manufacturers’ products involve replacing the entire system with a traditional pneumatic valve, requiring long vacuum hose runs, additional parts for tapping into the intake manifold vacuum, plus either a different solenoid valve to actuate the pneumatic valve or a ballast resistor to plug into the OE wiring loom. All these additional items result in a product that is slower, less responsive, more expensive and takes much longer to install.
GFB’s DV+ solution on the other hand is more responsive, less expensive, easier to install, and doesn’t cause compressor surge/turbo flutter. Oh, and it doesn’t require different springs or frequent re-builds.
Many late-model European cars use ECU controlled solenoid-type diverter valves. This is a good concept because the valve can react very quickly and it only opens when it needs to.
However, there are some problems with these valves. There are typically two types of solenoid-actuated diverter valves found standard on VAG and European cars, both of which have their shortcomings.
Common OE Problem #1
The diaphragm types are commonly known to rupture, especially when boost and temperature are increased as a result of chip tuning.Common OE Problem #2
The plastic piston-type leaks far more than most people realise (by design, not from wear), and doesn’t always close after a high-boost gear shift.Manual: http://www.gfb.com.au/phocadownload/t9351%20instructions.pdf
OE nummers
- 06F145710C - AUDI
- 06F145710G - AUDI
- 06H145710D - AUDI
- 6F145710C - AUDI
- 6F145710G - AUDI
- 6H145710D - AUDI
- 06F145710C - SEAT
- 06F145710G - SEAT
- 06H145710D - SEAT
- 6F145710C - SEAT
- 6F145710G - SEAT
- 6H145710D - SEAT
- 06F145710B - SKODA
- 06F145710C - SKODA
- 06F145710G - SKODA
- 06H145710B - SKODA
- 06H145710D - SKODA
- 6F145710B - SKODA
- 6F145710C - SKODA
- 6F145710G - SKODA
- 6H145710B - SKODA
- 6H145710D - SKODA
- 06F145710C - VW
- 06F145710G - VW
- 06H145710D - VW
- 6F145710C - VW
- 6F145710G - VW
- 6H145710D - VW
- 06H145710B - AUDI
- 06F145710B - AUDI
- 06H145710B - SEAT
- 06F145710B - SEAT
- 06H145710B - VW
- 06F145710B - VW
- 06F145710C - VAG
- 06H145710B - VAG
- 06H145710D - VAG
- 06F145710B - VAG
- 06F145710G - VAG
- 139327 - HITACHI
Manual: http://www.gfb.com.au/phocadownload/t9351%20instructions.pdf
OE nummers
- 06F145710C - AUDI
- 06F145710G - AUDI
- 06H145710D - AUDI
- 6F145710C - AUDI
- 6F145710G - AUDI
- 6H145710D - AUDI
- 06F145710C - SEAT
- 06F145710G - SEAT
- 06H145710D - SEAT
- 6F145710C - SEAT
- 6F145710G - SEAT
- 6H145710D - SEAT
- 06F145710B - SKODA
- 06F145710C - SKODA
- 06F145710G - SKODA
- 06H145710B - SKODA
- 06H145710D - SKODA
- 6F145710B - SKODA
- 6F145710C - SKODA
- 6F145710G - SKODA
- 6H145710B - SKODA
- 6H145710D - SKODA
- 06F145710C - VW
- 06F145710G - VW
- 06H145710D - VW
- 6F145710C - VW
- 6F145710G - VW
- 6H145710D - VW
- 06H145710B - AUDI
- 06F145710B - AUDI
- 06H145710B - SEAT
- 06F145710B - SEAT
- 06H145710B - VW
- 06F145710B - VW
- 06F145710C - VAG
- 06H145710B - VAG
- 06H145710D - VAG
- 06F145710B - VAG
- 06F145710G - VAG
- 139327 - HITACHI
Cross reference:GFB-T9351 inklappen
Merk Model Type Bouwjaar Audi A1 / S1 (8X1/8XA/8XF/8XK) 1.4 TFSI (90kW/122hp) 2010 - 2015 GFB-T9351 Audi A1 / S1 (8X1/8XA/8XF/8XK) 1.8 TFSI 2015 - 2018 GFB-T9351 Audi A1 / S1 (8X1/8XA/8XF/8XK/GBA) 2.0TFSI (inc. S1) 2012 - 2023 GFB-T9351 Audi A3 / S3 / RS3 (8P1/8P7/8PA) 1.8 TFSI 2006 - 2013 GFB-T9351 Audi A3 / S3 / RS3 (8P1/8P7/8PA) 2.0 TFSI 2004 - 2013 GFB-T9351 Audi A3 / S3 / RS3 (8P1/8P7/8PA/8V1/8VA/8VF/8VK) 1.4 TSI (turbo only/NOT twincharged) 2007 - 2020 GFB-T9351 Audi A3 / S3 / RS3 (8PA) RS3 2.5 TFSI 2011 - 2012 GFB-T9351 Audi A3 / S3 / RS3 (8V1/8V7/8VA/8VE/8VF/8VK/8VM/8VS) 1.8 TFSI 2012 - 2023 GFB-T9351 Audi A3 / S3 / RS3 (8V1/8V7/8VA/8VE/8VF/8VK/8VM/8VS) 2.0 TFSI / TSI 2014 - 2020 GFB-T9351 Audi A3 / S3 / RS3 (8VA/8VF) RS3 2.5 TFSI (EA855 engine) 2015 - 2020 GFB-T9351 Audi A3 / S3 / RS3 (8VA/8VF/8VM/8VS) RS3 2.5 TFSI (EA855evo engine) 2017 - 2020 GFB-T9351 Audi A4 / S4 / RS4 (8EC/8ED/8H7/8HE/B6/B7) 2.0 TFSI 2004 - 2009 GFB-T9351 Audi A4 / S4 / RS4 (8K2/8K5/8KH/B8) 2.0 TFSI 2008 - 2015 GFB-T9351 Audi A4 / S4 / RS4 (8K2/8K5/B8) 1.8 TFSI 2007 - 2012 GFB-T9351 Audi A4 / S4 / RS4 (8V1/8V7/8VA/8VE/8VF/8VK/8VM/8VS) 2.0 TFSI / TSI 2015 - 2023 GFB-T9351 Audi A5 / S5 / RS5 (8F7/8T3/8TA) 1.8 TFSI 2007 - 2017 GFB-T9351 Audi A5 / S5 / RS5 (8F7/8T3/8TA) 2.0 TFSI 2008 - 2017 GFB-T9351 Audi A5 / S5 / RS5 (8V1/8V7/8VA/8VE/8VF/8VK/8VM/8VS) 2.0 TFSI / TSI 2016 - 2023 GFB-T9351 Audi A6 / S6 / RS6 (4A2/4A5/4G2/4G5/4GC/4GD/C8) 2.0 TFSI 2011 - 2023 GFB-T9351 Audi A6 / S6 / RS6 (4F2/4F5/C6) 2.0 TFSI 2005 - 2011 GFB-T9351 Audi A6 / S6 / RS6 (8F7/8T3/8TA) 1.8 TFSI 2014 - 2023 GFB-T9351 Audi A7 (8F7/8T3/8TA) 1.8 TFSI 2015 - 2018 GFB-T9351 Audi A7 (8V1/8V7/8VA/8VE/8VF/8VK/8VM/8VS) 2.0 TFSI / TSI 2014 - 2023 GFB-T9351 Audi A8 (4H2/4H8/4HC/4HL) 2.5 TFSI 2012 - 2016 GFB-T9351 Audi A8 (8V1/8V7/8VA/8VE/8VF/8VK/8VM/8VS) 2.0 TFSI / TSI 2012 - 2018 GFB-T9351 Audi Q2 (8V1/8V7/8VA/8VE/8VF/8VK/8VM/8VS) 2.0 TFSI / TSI 2017 - 2023 GFB-T9351 Audi Q3 (8UB/8UG/F3B/F3N) Q3 RS 2.5 TFSI 2013 - 2023 GFB-T9351 Audi Q3 (8V1/8V7/8VA/8VE/8VF/8VK/8VM/8VS) 2.0 TFSI / TSI 2011 - 2023 GFB-T9351 Audi Q5 (8R/8RB) 2.0 TFSI 2008 - 2017 GFB-T9351 Audi Q5 (8V1/8V7/8VA/8VE/8VF/8VK/8VM/8VS) 2.0 TFSI / TSI 2016 - 2023 GFB-T9351 Audi Q7 (8V1/8V7/8VA/8VE/8VF/8VK/8VM/8VS) 2.0 TFSI / TSI 2015 - 2023 GFB-T9351 Audi TT / TTS / TTRS (8J3/8J9) 2.0 TFSI 2006 - 2014 GFB-T9351 Audi TT / TTS / TTRS (8J3/8J9) 2.5 TFSI 2009 - 2014 GFB-T9351 Audi TT / TTS / TTRS (8J3/8J9/FV3/FV9/FVP/FVR) 1.8 TFSI / TSI 2008 - 2018 GFB-T9351 Audi TT / TTS / TTRS (FV3/FV9/FVP/FVR) 2.0 TFSI (not TTS) 2014 - 2023 GFB-T9351 Audi TT / TTS / TTRS (FV3/FV9/FVP/FVR) 2.5 TFSI 2016 - 2023 GFB-T9351 KTM X-Bow 2.0 TFSI 2008 - 2023 GFB-T9351 Porsche Macan (95B) 2.0T 2014 - 2023 GFB-T9351 Seat Alhambra (710/711) 1.8 TFSI / TSI 2012 - 2015 GFB-T9351 Seat Alhambra (710/711) 2.0 TFSI / TSI 2010 - 2023 GFB-T9351 Seat Altea XL (710/711) 2.0 TFSI / TSI 2009 - 2023 GFB-T9351 Seat Ateca (KH7/KHP) 2.0 TFSI 2017 - 2023 GFB-T9351 Seat Exeo (710/711) 1.8 TFSI / TSI 2010 - 2013 GFB-T9351 Seat Exeo (KH7/KHP) 2.0 TFSI 2009 - 2013 GFB-T9351 Seat Ibiza (6J1/6P5) Cupra 1.8 TSI 2015 - 2016 GFB-T9351 Seat Leon (1P1) 1.8 TSI 2007 - 2012 GFB-T9351 Seat Leon (1P1) Cupra R 2.0 TFSI 2009 - 2012 GFB-T9351 Seat Leon (1P1/5F1) 1.4 TSI (turbo only/NOT twincharged) 2007 - 2016 GFB-T9351 Seat Leon (710/711) 1.8 TFSI / TSI 2013 - 2018 GFB-T9351 Seat Leon (710/711) 2.0 TFSI / TSI 2005 - 2020 GFB-T9351 Seat Tarraco (710/711) 2.0 TFSI / TSI 2018 - 2023 GFB-T9351 Seat Toledo (1P1/5F1) 1.4 TSI (turbo only/NOT twincharged) 2007 - 2009 GFB-T9351 Seat Toledo (710/711) 1.8 TFSI / TSI 2007 - 2009 GFB-T9351 Seat Toledo (710/711) 2.0 TFSI / TSI 2005 - 2009 GFB-T9351 Skoda Karoq (ND7/NU7) 2.0 TFSI / TSI 2019 - 2023 GFB-T9351 Skoda Kodiaq (ND7/NU7) 2.0 TFSI / TSI 2019 - 2023 GFB-T9351 Skoda Octavia (1Z3/1Z5) 1.4 TSI (turbo only/NOT twincharged) 08-13 2008 - 2013 GFB-T9351 Skoda Octavia (1Z3/1Z5) 1.8 TFSI / TSI 2007 - 2013 GFB-T9351 Skoda Octavia (1Z3/1Z5) 2.0 TFSI / TSI (inc. RS/vRS) 2005 - 2013 GFB-T9351 Skoda Octavia (5E3/5E5/5E6/NL3/NR3) 1.8/2.0 TSI (inc. RS/vRS) 2012 - 2020 GFB-T9351 Skoda Superb (1Z3/1Z5) 1.8 TFSI / TSI 2008 - 2020 GFB-T9351 Skoda Superb (3T4/3T5) 1.4 TSI (turbo only/NOT twincharged) 2008 - 2015 GFB-T9351 Skoda Superb (ND7/NU7) 2.0 TFSI / TSI 2010 - 2023 GFB-T9351 VW Atlas (CA1) 1.8 TSI 2017 - 2023 GFB-T9351 VW Beetle (5C1/5C2/5C7/5C8) 2.0 TSI 2011 - 2019 GFB-T9351 VW Beetle (CA1) 1.8 TSI 2013 - 2017 GFB-T9351 VW California T5 Camper (7EC/7EF/7EG/7HF) Passat B6 2.0 TSI 2011 - 2015 GFB-T9351 VW EOS (1F7/1F8) 1.4 TSI (turbo only/NOT twincharged) 08-13 2007 - 2015 GFB-T9351 VW EOS (1F7/1F8) 2.0 TFSI / TSI 2006 - 2015 GFB-T9351 VW Golf (Petrol Hatch) GTI 2.0 TFSI 2018 - On GFB-T9351 VW Golf 5 (1K1) 2.0 TFSI (inc. GTI) 2004 - 2009 GFB-T9351 VW Golf 6 (1F7/1F8) 1.4 TSI (turbo only/NOT twincharged) 08-13 2008 - 2014 GFB-T9351 VW Golf 6 (5K1/517) Golf R 4motion Mk6 2.0t FSI 08-on 2009 - 2016 GFB-T9351 VW Golf 6 (5K1/517/AJ5) 2.0 TSI (inc. GTI) 2009 - 2016 GFB-T9351 VW Golf 6 (CA1) 1.8 TSI 2009 - 2011 GFB-T9351 VW Golf 7 (1F7/1F8) 1.4 TSI (turbo only/NOT twincharged) 08-13 2012 - 2020 GFB-T9351 VW Golf 7 (1F7/1F8) 2.0 TFSI / TSI 2013 - 2017 GFB-T9351 VW Golf 7 (5G1/BA5/BE1/BE2/BQ1/BV5) 1.8 TFSI / TSI 2013 - 2020 GFB-T9351 VW Golf 7 (Petrol Hatch) GTI 2.0 TFSI 2013 - 2020 GFB-T9351 VW Golf Mk5 (1K1) 2.0 TFSI (inc. GTI) 2004 - 2009 GFB-T9351 VW Golf Mk6 (1F7/1F8) 1.4 TSI (turbo only/NOT twincharged) 08-13 2008 - 2014 GFB-T9351 VW Golf Mk6 (5K1/517) Golf R 4motion Mk6 2.0t FSI 08-on 2009 - 2016 GFB-T9351 VW Golf Mk6 (5K1/517/AJ5) 2.0 TSI (inc. GTI) 2009 - 2016 GFB-T9351 VW Golf Mk6 (CA1) 1.8 TSI 2009 - 2011 GFB-T9351 VW Golf Mk7 (1F7/1F8) 1.4 TSI (turbo only/NOT twincharged) 08-13 2012 - 2020 GFB-T9351 VW Golf Mk7 (1F7/1F8) 2.0 TFSI / TSI 2013 - 2017 GFB-T9351 VW Golf Mk7 (5G1/BA5/BE1/BE2/BQ1/BV5) 1.8 TFSI / TSI 2013 - 2020 GFB-T9351 VW Golf Mk7 (Petrol Hatch) GTI 2.0 TFSI 2013 - 2020 GFB-T9351 VW Golf Plus (1F7/1F8) 1.4 TSI (turbo only/NOT twincharged) 08-13 2007 - 2014 GFB-T9351 VW Jetta (162/163/AV2/AV3) 2.0 TSI 2010 - 2023 GFB-T9351 VW Jetta (1F7/1F8) 1.4 TSI (turbo only/NOT twincharged) 08-13 2006 - 2023 GFB-T9351 VW Jetta (1K2) Jetta Mk5 2.0 TFSI 2005 - 2010 GFB-T9351 VW Jetta (CA1) 1.8 TSI 2014 - 2023 GFB-T9351 VW Multivan (7EC/7EF/7EG/7HF) Passat B6 2.0 TSI 2011 - 2019 GFB-T9351 VW Passat (1F7/1F8) 1.4 TSI (turbo only/NOT twincharged) 08-13 2010 - 2014 GFB-T9351 VW Passat (1F7/1F8) 2.0 TFSI / TSI 2010 - 2014 GFB-T9351 VW Passat (5G1/BA5/BE1/BE2/BQ1/BV5) 1.8 TFSI / TSI 2012 - 2023 GFB-T9351 VW Passat (7EC/7EF/7EG/7HF) Passat B6 2.0 TSI 2005 - 2023 GFB-T9351 VW Passat (CA1) 1.8 TSI 2010 - 2014 GFB-T9351 VW Passat CC (7EC/7EF/7EG/7HF) Passat B6 2.0 TSI 2008 - 2012 GFB-T9351 VW Polo (1F7/1F8) 1.4 TSI (turbo only/NOT twincharged) 08-13 2010 - 2020 GFB-T9351 VW Polo (6C/6C1/6R/6R1) GTI 1.8TSI (2015-on) 2014 - 2023 GFB-T9351 VW Polo (6C1/6R1/AE1/AW1/BZ1) GTI / R WRC 2.0 TFSI 2013 - 2023 GFB-T9351 VW Scirocco (137/138/Mk3) Mk3 2.0 TSI 2006 - 2017 GFB-T9351 VW Scirocco (137/138/Mk3) Scirocco Mk3 1.4 TSI (turbo only/not twincharged) 2006 - 2017 GFB-T9351 VW Scirocco (137/138/Mk3) Scirocco R Mk3 2.0t FSI (EA113) 06-13 2006 - 2017 GFB-T9351 VW Sharan (1F7/1F8) 1.4 TSI (turbo only/NOT twincharged) 08-13 2010 - 2015 GFB-T9351 VW Sharan (7EC/7EF/7EG/7HF) Passat B6 2.0 TSI 2010 - 2020 GFB-T9351 VW Sharan (CA1) 1.8 TSI 2011 - On GFB-T9351 VW Tiguan (1F7/1F8) 1.4 TSI (turbo only/NOT twincharged) 08-13 2008 - 2018 GFB-T9351 VW Tiguan (1F7/1F8) 2.0 TFSI / TSI 2007 - 2023 GFB-T9351 VW Tiguan (5N) 2.0 TFSI 2007 - 2018 GFB-T9351 VW Tiguan (5N) 2.0 TSI 2011 - 2018 GFB-T9351 VW Touareg (1F7/1F8) 2.0 TFSI / TSI 2018 - 2023 GFB-T9351 VW Touran (1F7/1F8) 1.4 TSI (turbo only/NOT twincharged) 08-13 2010 - 2015 GFB-T9351 VW Touran (5G1/BA5/BE1/BE2/BQ1/BV5) 1.8 TFSI / TSI 2015 - 2023 GFB-T9351 VW Transporter (7EC/7EF/7EG/7HF) Passat B6 2.0 TSI 2011 - 2019 GFB-T9351 VW T-ROC (1F7/1F8) 2.0 TFSI / TSI 2017 - 2023 GFB-T9351 Heeft u vragen over of ervaring met dit product? En wilt u dat met anderen delen? Plaats dan hier uw review. Voor alle niet-productgerichte vragen of reacties verwijzen wij u graag naar onze FAQ of naar de klantenservice.
22-07-2018Review geplaatst door: Wouter vd bErg degelijk materiaal, duidelijke handleiding erbij. Past perfect en houdt de turbo druk vast tot de 6500 toeren, waar de orginele het vol houdt tot max 4500 toeren. Vw tiguan 1.4 tsi 5n21-09-2017Review geplaatst door: Kristof DhaenMijn OEM DV zag er ook uit zoals op de foto. Vervanging was nodig dus meteen maar deze gekocht en niet weer die VAG prul. Amai inderdaad wat een verschil! Dikke aanrader!!!!!!!23-07-2017Review geplaatst door: BrianDeze simpele aanpassing maakt een wereld van verschil! Bij mijn Golf gti voelt het alsof er meer turbodruk is (is natuurlijk niet zo). Auto trekt veel beter, minder turbogat. Aanrader.Wilt u iemand anders attent maken op een artikel dat u in onze webwinkel heeft gevonden? Vul dan onderstaand formulier in. Deze persoon krijgt via een e-mail het artikel van uw keuze te zien. U kunt er ook nog een persoonlijke boodschap bij vermelden.28-07-2017Vraag geplaatst door: Tim AudenaertBeste , Is de gfb T9351 dv+ ook geschikt voor een skoda octavia combi RS 2.0tfsi 220pk van 2016? Alvast bedankt Mvg TimReactie van [shopname] :Ja deze past ook op uw auto. SKODA Octavia RS/vRS 2013-on 5E3 162kw Petrol Engine FWD Hatchback 05/13-on03-05-2016Vraag geplaatst door: Ivo -Hallo, Ik wil de diverter valve van mijn Skoda Superb (uit 2010, 1.8 tsi 160PK CDAA motorcode) vervangen. Welke gfb valve is hiervoor geschikt? Vriendelijke groet, IvoReactie van [shopname] :De T9351 is ook passend op uw model.
